Stabilizer Yoritsu N Series
Yoritsu Stabilizer N Series adalah solusi yang efisien, direkomendasikan untuk perlindungan peralatan listrik terhadap fluktuasi tegangan, lonjakan, dan noise yang ada pada sumber listrik.
Stabilizer Yoritsu Single-Phase tersedia dengan berbagai kapasitas mulai dari 2 KVA hingga 10 KVA. Semua Stabilizer Yoritsu N Series dilengkapi dengan garansi maksimal 3 tahun, dengan jaminan suku cadang dan dukungan purna jual.
MODEL
Stabilizer atau disebut juga AVR ( Automatic Voltage Regulator ) digunakan untuk mengatur sumber daya input voltage ke peralatan, mengeluarkan voltage yang stabil dan melindungi peralatan listrik.
Stabilizer Yoritsu N Series menyediakan aplikasi yang cocok untuk:
- Rumah, Toko, Restoran & Kafe
- Ruko, Kantor, Perbankan, Pusat Pameran & Hotel
- Pusat Penyiaran, Telekomunikasi & Data
- Laboratorium, Cold Storage, Bengkel Kecil
- Industri Rumah Tangga & Pabrik
- Layanan Umum & Klinik
Features :
- Heavy Duty
- Low Noise
- Efficiency over 98%
- Standard Frequency 50/60 Hz
- Display Output : Reliable Voltmeter & Amperemeter Analogue
- Control System : Advance PCB, 24V DC Servo Motor
- No fan required, Convention Cooled
- Insulation class E
- Protection class IP00 & IP11
- Easy & fast installation
- ISO9001 Quality Certification
- Adjustable PCB electronic output with accuracy 1%, 2%, 3%, 4%
- 3 Year Warranty
Input Voltage | 160 – 240 V (1 Phase) |
Output Voltage | 220 V +/- 1% (1 Phase) |
Frequency | 45 – 60 Hz |
Response time | within 1 second against 10% input voltage deviation |
Efficiency | Better 98% (input voltage 180V) output voltage 220V and at rated load. |
Ambient Temperature | -5 deg Cel. ~ +40 deg Cel. |
Ambient Humidity | Less than 90% (relative humidity) |
Temperature Rise | Less than 75 deg C (input voltage 180V, output voltage 220V and at rated load). |
Cooling System | Convention cooled |
Control System | DC servo motor |
Dielectric Strength | 3000V for 1 min |
Stabilizer Yoritsu N Series ( Single Phase )
Input 160 – 240V 50 Hz / Output 220V 50 Hz
Type | Power | Cabinet Model | Dimensi Box (mm) | Weight (Kg) | ||
---|---|---|---|---|---|---|
Depth | Width | Height | ||||

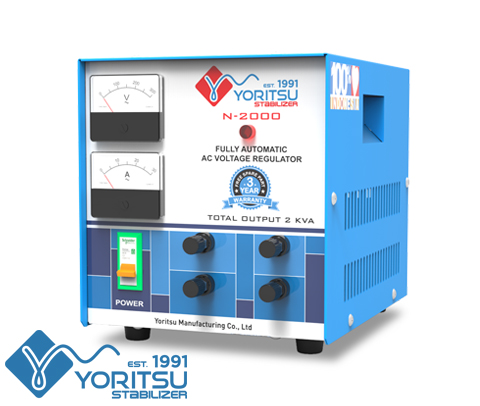

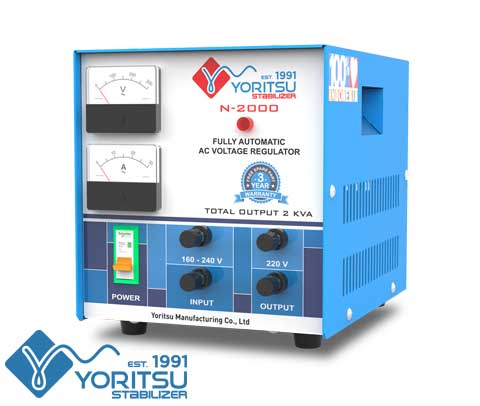

N-2000 | 2 | 1 | 310 | 240 | 250 | 18 |

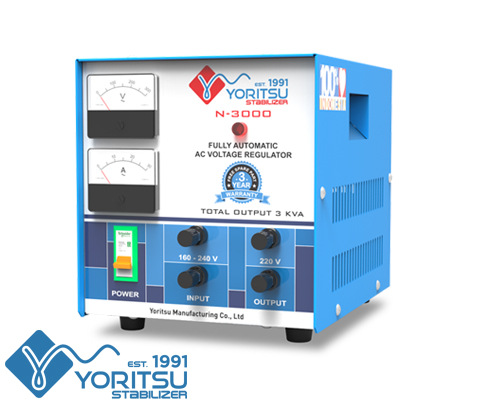

N-3000 | 3 | 1 | 310 | 240 | 250 | 19 |

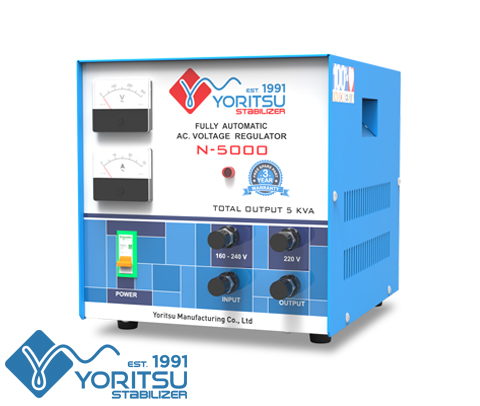

N-5000 | 5 | 1 | 360 | 300 | 300 | 25 |
N-7500 | 7.5 | 1 | 410 | 340 | 330 | 29 |

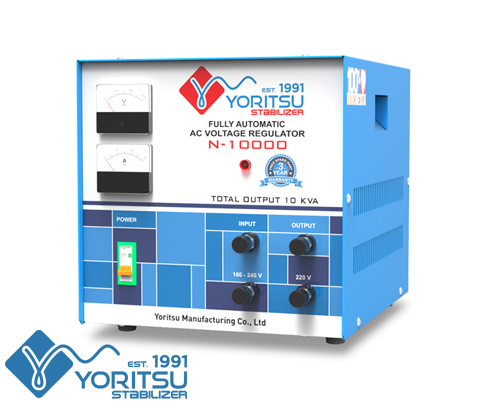

N-10000 | 10 | 1 | 410 | 340 | 330 | 32 |
N-15000 | 15 | 2 | 500 | 450 | 700 | 78 |
N-20000 | 20 | 2 | 500 | 450 | 700 | 79 |
N-25000 | 25 | 3 | 500 | 450 | 1100 | 130 |
N-30000 | 30 | 3 | 500 | 450 | 1100 | 133 |
All dimensions are subject to undergo some modifications.
Yoritsu Stabilizer with its constant development reserves the right to modify the above dimensions without notice.
Semua Yoritsu Stabilizer N Series diproduksi sesuai dengan standar SPLN. Yoritsu Stabilizer dibuat dengan dan sesuai dengan standar manajemen mutu ISO 9001:2015.
Yoritsu Stabilizer N Series juga membantu pelanggan dalam hal keamanan. Kami menggunakan sistem kualitas kami sendiri, yang dapat disesuaikan dengan keinginan dan kebutuhan pelanggan.
